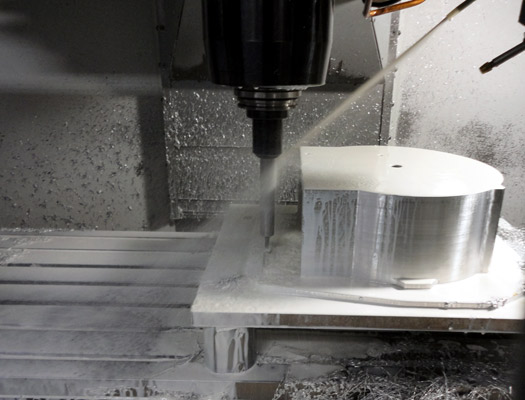

Machining
G&Z has assisted in the engineering and production machining for numerous arenas.
- Medical, Optical, Printing, Communications, Molding, Laser, Aerospace, Military and DOD

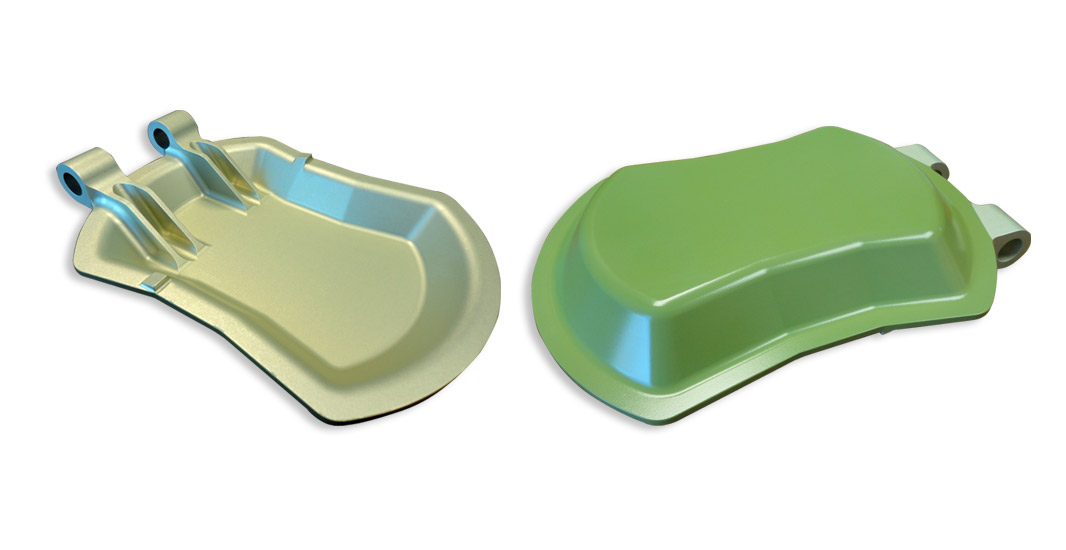

Medical Industry

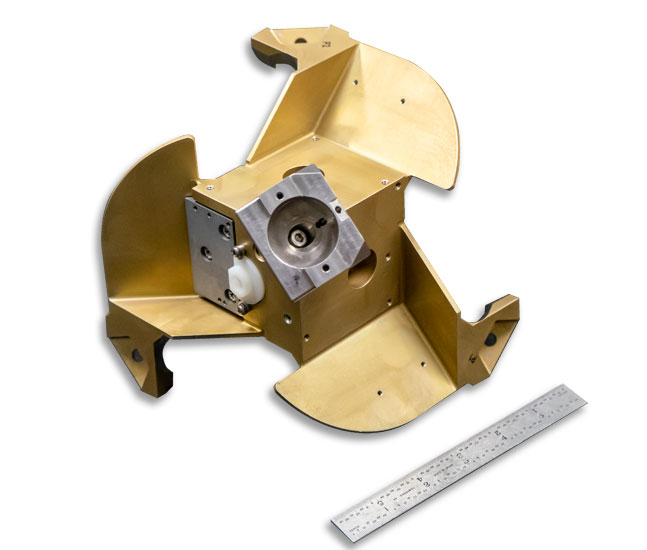

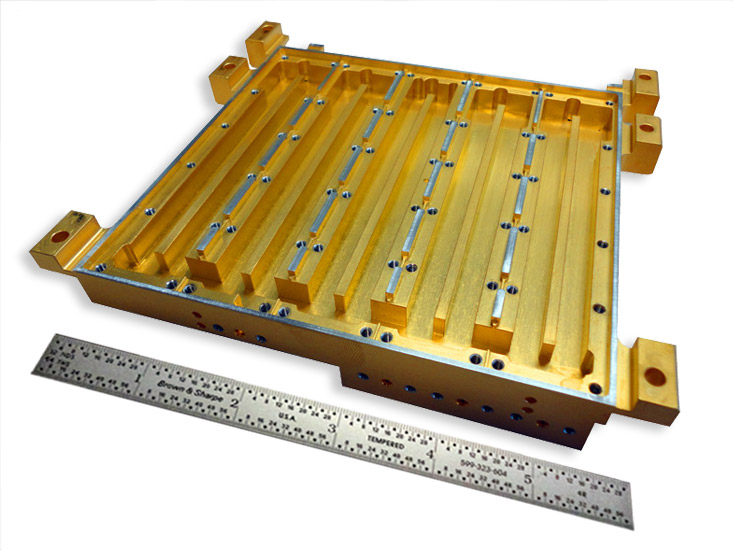

Machined and assembled Optical Housing parts for Aerospace

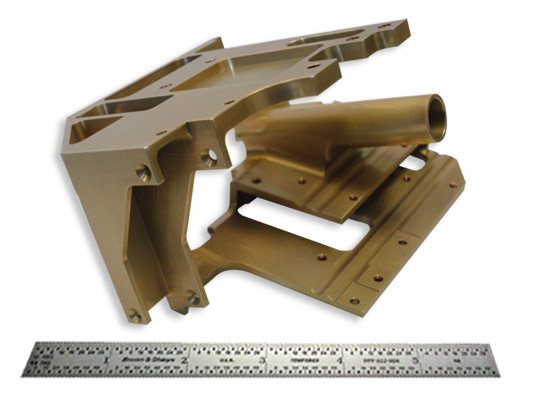

Parts machined from solid for guidance systems – Azimuth, Elevation and Outer ring and housing for EC Systems.

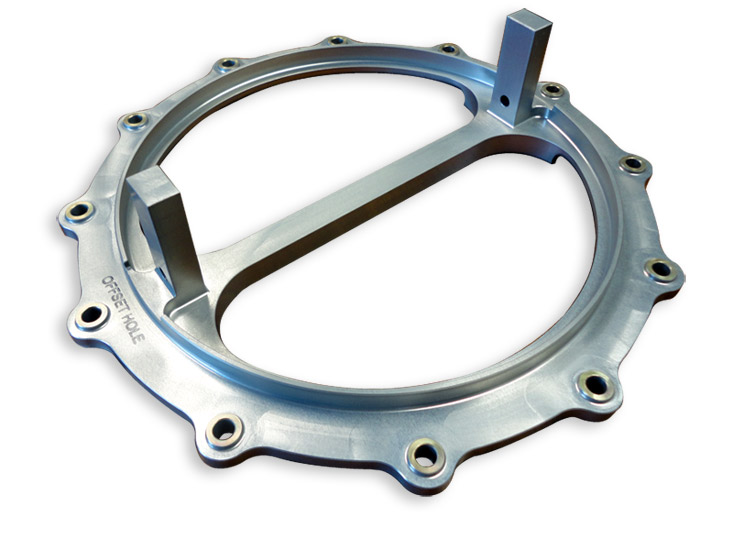

Machined casting
Machined casting of a Lantrin ECS Frame; 13" Diameter x 19"
The mounting holes for the frame cover are required to be normal to the spline with a true position to the morman ring of .005". This requires machining in a (5) Axis mode while holding the positional tolerance over 19" long surface.
|
|
| Conical | Straight |

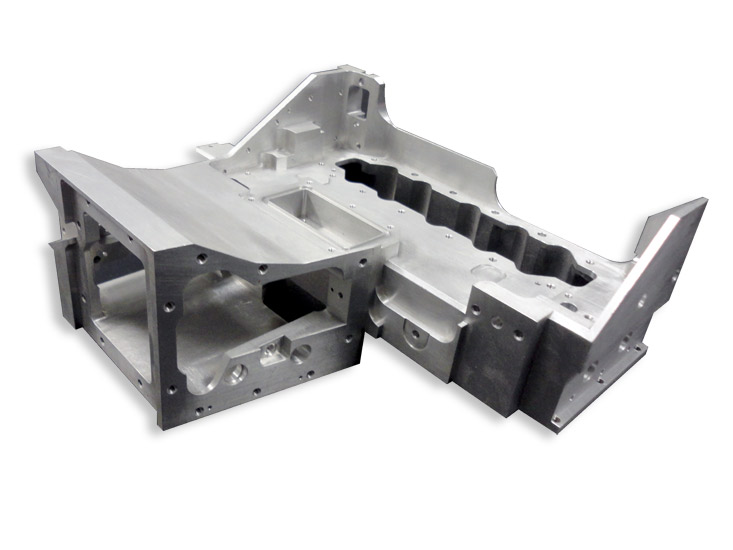

Each piece was machined from a solid piece of material.
Large machined castings 16" diameter x 48" long.
